Ever wondered why that little amber tire icon suddenly lights up on your dashboard? That’s your Tire Pressure Monitoring System (TPMS) looking out for you. It constantly checks each tire’s air pressure against your car manufacturer’s recommended levels. If one drops about 20–25% below spec, TPMS sends you a warning before problems like tire damage, reduced grip, or longer stopping distances sneak up on you. Whether it’s using wheel-mounted sensors or ABS-based calculations, TPMS helps you stay on top of fuel efficiency, load capacity, and overall stability. And the best part? There are even smarter ways to use it to get the most out of your drive.
What Is a Tire Pressure Monitoring System (TPMS)?
A tire pressure monitoring system (TPMS) is an onboard safety system that continuously measures and reports the air pressure in each of your tires, typically in psi or kPa.
Using wheel-mounted sensors and a control module, it tracks real-time pressure data and compares it against manufacturer-specified thresholds stored in the vehicle’s electronic control unit.
When pressure drops below these calibrated limits, the system triggers a standardized warning indicator on your instrument panel so you can take corrective action.
Understanding tire pressure monitoring systems basics
Even before a warning light turns on, a tire pressure monitoring system (TPMS) is continuously measuring air pressure in one or more tires and comparing those readings to calibrated thresholds set by the vehicle manufacturer.
For understanding tire pressure monitoring systems, you’ll want to know that these thresholds are typically based on a percentage drop from the recommended cold inflation pressure, in line with federal safety standards.
TPMS explained for drivers focuses on its role as a safety and efficiency device: it helps you maintain proper load-carrying capacity, predictable handling, and ideal braking performance.
Among the benefits of TPMS for drivers are more consistent tire wear across extreme seasonal temperature swings, reduced risk of roadside disablement, and better fuel economy on urban and highway routes.
How TPMS works to track tire pressure in real time
While you’re driving, a tire pressure monitoring system (TPMS) uses electronic sensors and a control module to measure, transmit, and interpret tire pressure data in real time.
Each wheel typically has a pressure sensor and temperature sensor mounted in or near the valve stem. These measure psi and temperature, then send radio-frequency signals to the TPMS control unit at specified intervals.
The control unit compares readings to manufacturer‑defined thresholds, often aligned with federal standards such as FMVSS No. 138, to determine under‑inflation conditions.
If pressure drops below the calibrated limit, you’ll see a warning icon or message.
Whether you’re using a tire pressure monitoring system Illinois repair shops service or another region, this closed‑loop process explains how TPMS improves car safety and supports MAP‑level inspection consistency.
Why TPMS Matters for Vehicle Safety
When your tires remain within the manufacturer’s specified pressure range, you maintain an ideal contact patch, braking efficiency, and fuel economy, which directly affects vehicle safety and performance.
TPMS alerts you when pressure drops below calibrated thresholds, helping you correct underinflation before it leads to overheating, tread separation, or sudden blowouts.
How TPMS improves car safety and performance
Because tire pressure directly affects grip, braking distance, and vehicle stability, a Tire Pressure Monitoring System (TPMS) is a critical safety control, not just a convenience feature.
TPMS gives you immediate feedback when pressure deviates from manufacturer specifications, helping you keep the vehicle operating within its engineered limits. Underinflated or overinflated tires change the tire’s contact patch, alter ABS and stability-control effectiveness, and can lengthen stopping distances.
With TPMS functioning correctly, you’re better able to:
- Maintain specified pressure ranges that support ideal traction and predictable handling dynamics.
- Preserve designed load-carrying capacity, reducing chassis stress and preserving suspension geometry.
- Support compliance with OEM recommendations and federal safety requirements (such as FMVSS No. 138 in the U.S.).
This standards-based monitoring directly enhances operational safety and overall performance.
Preventing blowouts and uneven wear with proper pressure
Although it may seem like a minor deviation, running tires just a few PSI below specification greatly raises casing temperature, accelerates tread degradation, and increases the risk of catastrophic blowouts—especially at highway speeds and under load.
TPMS helps you maintain pressure within OEM-specified ranges, typically ±1–2 PSI of the placard value, minimizing sidewall flex and heat buildup.
Underinflation concentrates stress on shoulder blocks, while overinflation shifts load to the center rib, producing measurable, asymmetric wear patterns.
By alerting you when pressure drops about 20–25% below specification (per FMVSS No. 138 for light vehicles), TPMS lets you correct deviations before they cause structural fatigue, belt separations, or ply failures.
Consistent pressure maintenance extends tread life, preserves designed contact patch geometry, and supports stable, predictable handling.
TPMS Explained for Drivers: Types and Functions
When you understand how your Tire Pressure Monitoring System is built and calibrated, you can interpret its warnings with greater accuracy and respond according to manufacturer and MAP Uniform Inspection and Communication Standards (UICS).
Modern vehicles typically use either direct TPMS, with pressure sensors at each wheel, or indirect TPMS, which estimates pressure using wheel speed and ABS data.
You’ll also see specific dashboard symbols and messages—such as the low-pressure indicator or TPMS fault warning—that each correspond to defined thresholds and diagnostic conditions in your owner’s manual and applicable industry standards.
Direct vs. indirect TPMS — what’s the difference?
Ever wonder why some vehicles display an exact PSI reading while others only trigger a generic low-pressure warning? That difference comes down to whether your car uses direct or indirect TPMS.
Direct systems use pressure sensors mounted in each wheel, transmitting real-time PSI and temperature data via radio frequency. Indirect systems calculate pressure changes from wheel-speed signals in the ABS/ESC system, assuming a lower-pressure tire has a smaller rolling radius.
- Direct TPMS typically reports PSI per tire, supports faster diagnostics, and aligns closely with regulatory thresholds.
- Indirect TPMS is lighter, cheaper, and avoids in-wheel batteries but requires calibration after tire rotations or replacements.
Both systems must meet federal TPMS performance requirements, but their accuracy, maintenance needs, and fault modes differ.
Common dashboard warnings and what they mean
Understanding whether your vehicle uses direct or indirect TPMS is only part of the picture; you also need to recognize what the system is telling you on the dashboard.
The most common symbol is the amber horseshoe-shaped icon with an exclamation point. If it’s solid, at least one tire is typically 25% below the manufacturer’s recommended cold inflation pressure, which aligns with U.S. FMVSS No. 138 thresholds.
A flashing TPMS light (often for 60–90 seconds at start-up, then solid) usually indicates a system fault: failed sensor, dead battery in a sensor, or communication error.
Some vehicles display individual tire pressures; if one reads “—” or “0 psi,” the module isn’t receiving valid data and you should have the system inspected.
Tire Pressure Monitoring System Illinois Drivers Should Know About
In Illinois, you’re expected to operate vehicles with TPMS that meet federal FMVSS requirements, and inspections at MAP-participating facilities reference these standards when documenting system condition.
You’ll want to understand how TPMS performance is evaluated—such as warning thresholds and sensor accuracy—because this directly affects safety and compliance on state highways and urban routes.
TPMS requirements and inspections in Illinois
Although tire pressure may seem like a simple maintenance item, Illinois treats Tire Pressure Monitoring Systems (TPMS) as a critical safety feature that’s embedded in both federal and state-level inspection and service expectations.
Your vehicle must comply with Federal Motor Vehicle Safety Standard (FMVSS) No. 138 if it was originally equipped with TPMS, and Illinois safety/emissions inspections will typically note illuminated TPMS warning lights as an item requiring diagnosis and correction.
When you visit a MAP-participating shop found through Motorist Assurance Program, technicians are expected to:
- Verify TPMS warning status and retrieve diagnostic trouble codes (DTCs).
- Inspect sensors, valve stems, and module communication per Uniform Inspection and Communication Standards (UICS).
- Document findings and distinguish “required” vs. “suggested” TPMS repairs so you can make informed decisions.
Benefits of TPMS for Illinois drivers on varying roads
Because Illinois inspection programs and MAP-participating shops treat TPMS as a safety system—not just a convenience feature—it’s worth looking at how it actually protects you on the road.
On Chicago expressways or I‑55, TPMS helps you maintain recommended cold inflation pressure, which supports ideal contact patch, braking distance, and electronic stability control performance.
On cracked rural pavements, TPMS warns you about punctures and impact-related pressure loss, reducing the risk of sidewall failure.
In winter, when a 10°F temperature drop can lower pressure about 1 psi, TPMS helps you keep pressures aligned with the door‑jamb label and MAP/UICS guidelines, improving traction on snow and slush.
Consistently correct pressure also improves fuel economy, tread life, and load‑carrying capacity.
Troubleshooting and Maintaining Your TPMS
When your TPMS warning light comes on, you’ll need to respond systematically—starting with verifying actual tire pressures against the automaker’s door-jamb placard values and applicable MAP/UICS guidelines.
You should also perform routine checks, such as inspecting sensor valve stems for damage or corrosion and confirming sensor IDs are correctly registered after tire rotation or replacement.

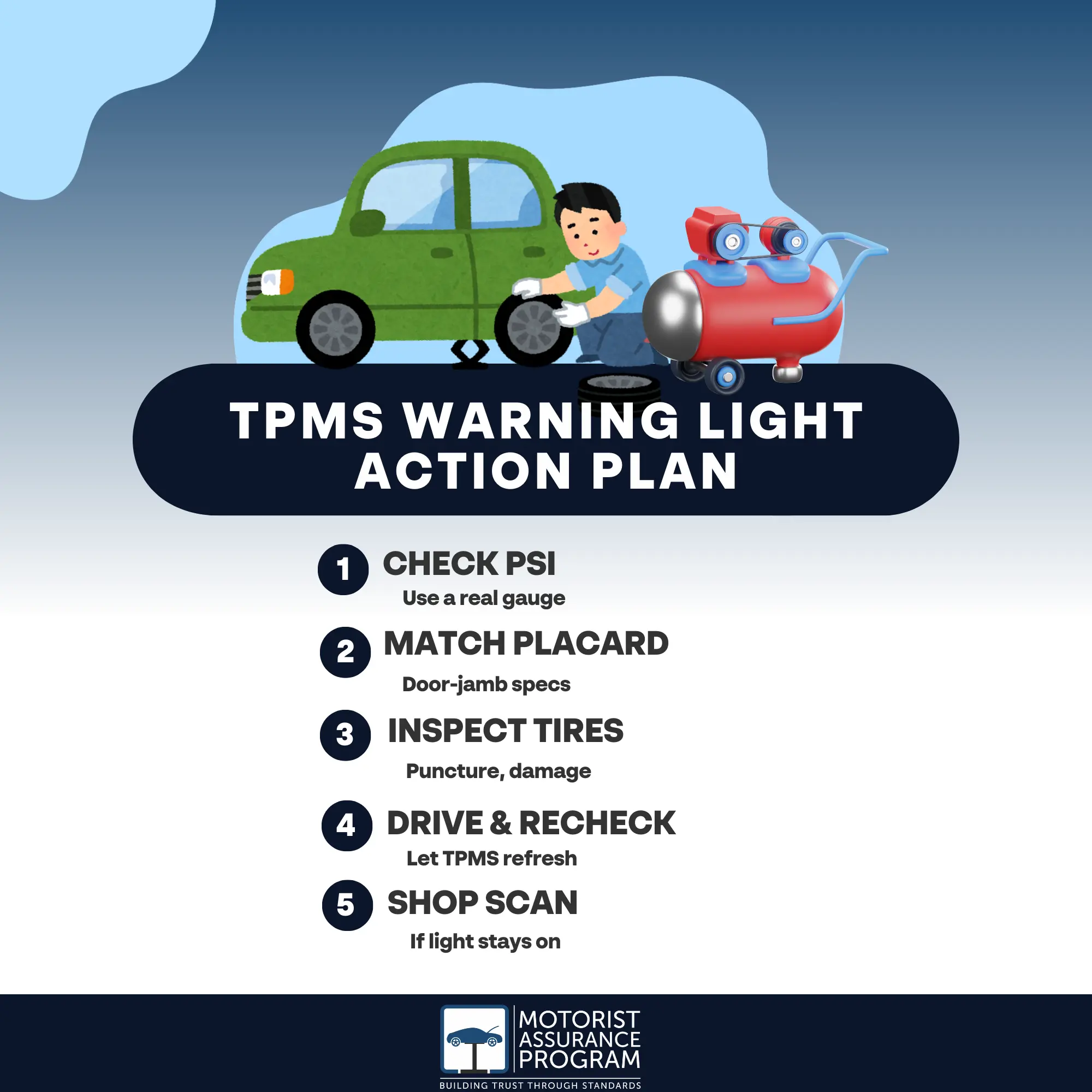

What to do when your TPMS warning light comes on
At the first illumination of your TPMS warning light, you should treat it as a safety prompt, not a suggestion. The light indicates at least one tire is outside the manufacturer’s specified pressure range—often by 25% or more—raising risks for handling, braking, and tread wear.
Immediately find a safe place to stop and visually inspect all tires for damage, punctures, or obvious low inflation. Then verify pressures with an accurate gauge, not just by appearance.
- Compare measured psi to the placard on your driver’s doorjamb, not the tire sidewall.
- Inflate or deflate each tire to the specified cold pressure, then drive several miles to allow the TPMS to refresh.
If the light stays on or flashes, consult a MAP-participating shop for diagnostic testing.
Routine checks to keep TPMS accurate and effective
Routine checks keep your TPMS sensors, wiring, and valve assemblies functioning within design tolerances, so the data you see is both accurate and timely.
At least monthly, verify actual cold tire pressures with a calibrated gauge and compare them to placard values and dash readings; a deviation above 25% indicates a likely TPMS fault.
Inspect valve stems and caps for corrosion, leaks, or physical damage, especially on aluminum clamp‑in sensor stems.
During rotations, seasonal tire changes, or puncture repairs, ask the shop to document TPMS relearn procedures, sensor IDs, and battery status where scan‑tool data is available.
Follow MAP’s Uniform Inspection and Communication Standards by requesting clear documentation of any TPMS-related findings, recommended corrections, and parts replaced.
Find trusted local service and maintenance through MAP
Finding a shop that’s both technically competent and transparent is easier if you use the Motorist Assurance Program’s resources.
When your TPMS light won’t reset, sensors need programming, or you’re unsure whether a sensor actually failed, MAP-participating facilities apply Uniform Inspection and Communication Standards (UICS) so you get data-backed explanations instead of guesswork.
Use the “Find My Shop” tool to locate facilities that:
- Follow UICS for TPMS diagnostics, documenting fault codes, pressure readings, and sensor status.
- Clearly separate “required,” “preventive,” and “suggested” TPMS services, so you can prioritize by safety and budget.
- Provide written estimates and repair rationales aligned with MAP guidelines, including sensor replacement intervals and re-learn procedures.
This standards-based approach helps you keep TPMS performance consistent and verifiable.
Frequently Asked Questions
Can I Legally Disable My TPMS System or Warning Light?
You generally can’t legally disable your TPMS; it’s a mandated safety sentinel. Under U.S. FMVSS No. 138, shops can’t knowingly deactivate it, and you’d risk inspection failures, liability exposure, and non‑compliance with OEM service standards.
How Does Cold Weather Specifically Affect TPMS Readings and Alerts?
Cold weather lowers tire air pressure about 1 psi per 10°F drop, so you’ll see TPMS warnings more often at startup. You shouldn’t clear alerts without verification; instead, measure pressure cold and inflate to OEM placard specifications.
Are Aftermarket Wheels and Tires Compatible With My Factory TPMS Sensors?
They usually are, but it’s not plug‑and‑play magic. You must match sensor frequency, valve type, and band/clip style, then perform TPMS relearn. Verify wheel/tire specs with OE documentation, MAP’s UICS, or a MAP-participating shop.
Does TPMS Replace the Need for Regular Manual Tire Pressure Checks?
No, TPMS doesn’t replace manual checks. You still need a gauge to verify cold pressures, detect slow leaks before warning thresholds, and confirm calibration. Follow MAP/UICS or OEM intervals and specifications for target PSI, rotation, and seasonal adjustments.
Will a TPMS Warning Light Fail My State Vehicle Inspection?
It might. In some states, an illuminated TPMS light’s an automatic safety inspection failure; in others it’s advisory only. Check your state’s inspection rules or MAP/UICS-based shop guidance to confirm how inspectors treat TPMS faults.
Takeaways
When your TPMS light comes on, it isn’t crying wolf; it’s delivering real‑time safety data, like a 24/7 ISO‑certified pit crew in your dashboard. By responding quickly—checking pressures with a calibrated gauge, inflating to the door‑jamb specs, and scheduling service when alerts persist—you’re protecting handling, braking distances, and fuel economy. Use MAP‑qualified shops to keep sensors, software, and procedures compliant with manufacturer and industry standards every mile you drive. If you want to learn more, visit us at 3321 Hobson Road, Suite A, Woodridge, Illinois 60517 or contact us now!
