What Causes Tire Wear and How to Prevent It

What Causes Tire Wear and How to Prevent It

Table of Contents

Do your tires seem to wear out faster than they should? Uneven tread isn’t just frustrating—it’s often a sign of deeper issues like incorrect air pressure, poor alignment, or worn suspension parts. Underinflated tires wear down at the edges, while overinflated ones lose life in the center. Misalignment can leave strange patterns like feathering or cupping, and everyday driving habits—hard stops, potholes, or curb bumps—add even more stress. The good news is that most of this can be prevented. By keeping your tires at the factory‑recommended PSI, rotating them every 5,000–7,500 miles, and checking alignment and tread depth regularly, you’ll extend their lifespan and enjoy a safer, smoother ride.

What Causes Tire Wear in Everyday Driving?

In everyday driving, you’re most likely to see tire wear driven by incorrect inflation pressures and chassis geometry issues.

When you run tires underinflated or overinflated, you change the contact patch and load distribution across the tread, creating distinct wear patterns such as “cupping” on shoulders or accelerated center wear that can be measured in 1/32-inch increments over a few thousand miles.

Simultaneously, misalignment and worn suspension components alter camber, toe, and caster angles, causing rapid, uneven tread loss on specific ribs that indicates the need for correction per MAP-aligned inspection standards.

Although tire wear can be influenced by many factors, incorrect inflation pressure is one of the most common and easily overlooked causes of premature tread loss.

Underinflation increases sidewall flex, heat buildup, and rolling resistance, so the shoulders scrub faster than the center. Overinflation crowns the tread, concentrating load on the center ribs.

To visualize what causes tire wear from pressure, see here:

  1. Underinflated: dark, feathered shoulder wear and warm sidewalls after highway driving.
  2. Overinflated: slick, polished center band with relatively unworn shoulders.
  3. Mixed axles: one tire underinflated, the other is correct, creating pull and vibration.
  4. Seasonal swings (critical for tire maintenance tips Illinois): pressure drops ~1 psi per 10°F, silently accelerating wear.

Use a quality gauge monthly to prevent uneven tire wear.

How alignment and suspension issues accelerate tread loss

When alignment or suspension geometry drifts out of spec, the tire’s contact patch stops tracking square to the road and the tread literally scrapes across the pavement every rotation.

Excessive toe creates rapid feathering and “sawtooth” wear, while incorrect camber concentrates load on the inner or outer shoulder, spiking contact-pressure and heat.

Worn ball joints, control arm bushings, and tie-rod ends let angles change dynamically, so you’re grinding rubber off in micro-bursts every bump or turn.

Even a 0.25° toe error can increase tread wear rates by double digits over 10,000 miles.

Following best practices to extend tire life means scheduling periodic alignment checks and suspension inspections—core tire care and safety for Illinois drivers dealing with potholes, frost heaves, and uneven roads.

Common Types of Uneven Tire Wear

When you look closely at your tread, specific patterns like edge wearcenter wear, and cupping each correspond to distinct mechanical or inflation-related issues.

Edge wear often indicates excessive toe or camber. Center wear points to chronic overinflation, and cupping suggests suspension or balance problems that cause the tire to oscillate.

Edge wear, center wear, and cupping explained

Even if your tires still have legal tread depth overall, specific wear patterns like edge wear, center wear, and cupping indicate distinct mechanical or inflation-related problems that need prompt correction.

Each pattern reflects how load, alignment, and inflation distribute forces through the contact patch.

  1. Imagine both outer tread blocks scrubbed smooth while the center looks relatively tall—classic underinflation edge wear from excessive shoulder loading.
  2. Picture a tire with a shaved-looking center rib and intact shoulders—overinflation center wear from reduced footprint area.
  3. Visualize scalloped, alternating “cups” around the circumference—cupping from imbalance or worn suspension components causing vertical oscillation.
  4. Compare tread depth with a gauge across the width and around the tire; you’ll see these patterns as quantifiable, repeatable measurements, not random damage.

What uneven tread tells you about your vehicle

Although tread depth is usually discussed as a single number, the way that depth varies across and around a tire is far more diagnostic, revealing specific chassis, alignment, and inflation issues.

When you see heavier wear on both outer shoulders, you’re likely underinflated, increasing shoulder contact pressure and heat. Excessive center wear points to chronic overinflation, shrinking the contact patch and overloading the middle ribs.

Inside-edge wear usually indicates excessive negative camber or toe-out; outside-edge wear suggests positive camber or toe-in. Feathered tread blocks, where one edge is sharp and the other rounded, indicate improper toe settings.

Cupping or scalloping typically signals worn shocks, struts, or bushings, allowing the wheel to oscillate. Reading these patterns early helps you correct root mechanical faults before they propagate.

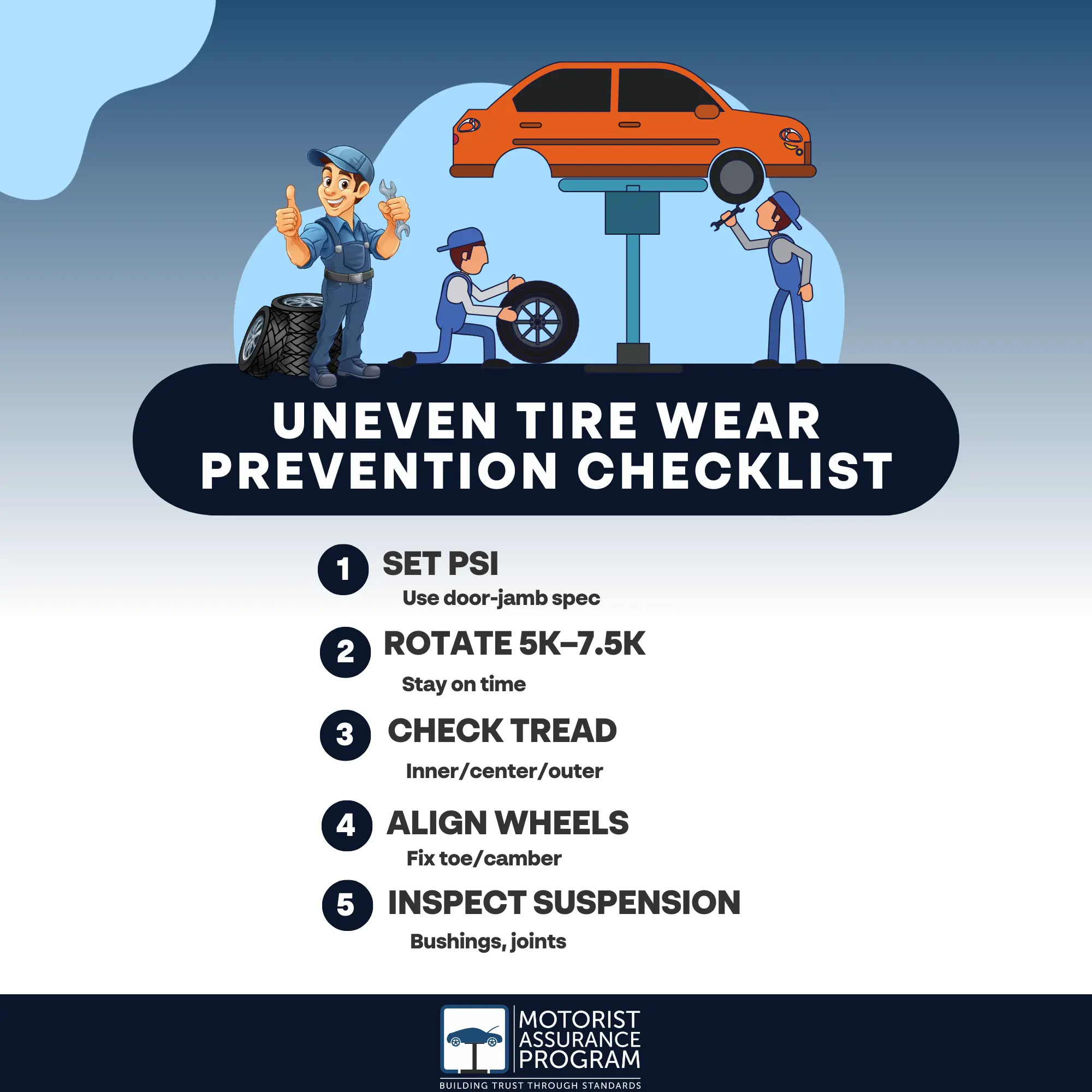

How to Prevent Uneven Tire Wear

To prevent uneven tire wear, you’ll need to follow manufacturer-specified rotation intervals (often 5,000–7,500 miles) and verify alignment angles (camber, toe, and caster) are within spec using calibrated alignment equipment.

You should also maintain tire pressure at the PSI listed on your vehicle’s placard, checking at least monthly and compensating for temperature changes of about 1 psi per 10°F.

Proper tire rotation intervals and alignment checks

While tire wear is influenced by many variables, following defined rotation intervals and scheduling alignment checks is the most controllable way to keep wear patterns uniform and extend tread life.

You’ll typically want to rotate every 5,000–7,500 miles, or at each oil change, following a pattern (front-to-rear, cross-rotation) that matches your drivetrain and tire type.

Think of the process in stages:

  1. Technician measures tread depth at all four corners and records the spread in 32nds.
  2. Wheels are removed, inspected for runout, then rotated according to manufacturer specs.
  3. Alignment rack verifies camber, caster, and toe against factory tolerances.
  4. Adjustments are made so the vehicle tracks straight, the steering wheel centers, and all tires carry load evenly, minimizing edge wear and feathering.

How to maintain correct tire pressure year-round

Rotations and alignments keep each tire doing its fair share of the work, but they only perform as designed if you’re running the correct inflation pressure every day.

Check pressures at least monthly and before long trips, using a quality digital gauge on cold tires (parked 3+ hours, under 1 mile driven). Use the door-jamb placard spec, not the sidewall max.

Temperature swings matter: air pressure changes about 1 psi for every 10°F. When seasons change, compensate so cold-morning readings still match the placard.

If you have TPMS, treat it as a backup, not your primary gauge.

Inspect for slow leaks at valve stems, punctures, and bead seats.

Correct pressure optimizes contact patch, reduces shoulder/center wear, and stabilizes braking and cornering loads.

Best Practices to Extend Tire Life

To maximize tire life, you’ll need to control both how you drive and how systematically you monitor tire condition.

Smooth acceleration, controlled braking, and reduced cornering speeds lower peak slip angles and heat generation, which directly slows tread wear rates.

Complement this with routine inspections using a tread depth gauge, checking for irregular wear patterns, and tracking measurements over time so you can correct issues before they shorten tire service life.

Driving habits that protect your tires

Although tire construction and alignment settings matter, day‑to‑day driving habits have a direct, measurable impact on tread wear rates and overall tire life. Aggressive inputs increase slip angle, friction heat, and rubber abrasion, accelerating wear.

  1. Ease into acceleration so torque transfer is progressive, minimizing tread block squirm and localized shear that scuffs off rubber.
  2. Brake earlier and smoothly to reduce ABS cycling, flat‑spotting risk, and high‑temperature glazing of the contact patch.
  3. Take corners at moderate speeds, using steady steering rather than sharp turn‑in that overloads outer shoulders and feathers tread edges.
  4. Avoid impacts with potholes, curbs, and speed bumps taken too fast; these cause belt stress, ply separation risk, and irregular wear patterns from casing deformation.

Routine inspections and tread depth monitoring

Even with correct alignment and careful driving, tires only deliver their designed service life if you routinely inspect them and track tread depth with objective measurements rather than guesswork.

You should visually inspect each tire at least monthly and before long trips, checking shoulders, center ribs, and inner sidewalls for cupping, feathering, exposed cords, or sidewall bulges.

Use a tread depth gauge, not a coin, to record readings across three zones (inner, center, outer) at multiple points around the circumference.

New passenger tires typically start near 10/32″–11/32″; plan replacement at 4/32” for wet traction, and treat 2/32″—the legal minimum in most states—as an absolute limit.

Uneven deltas over 2/32″ across the tread indicate alignment, inflation, or suspension faults needing prompt correction.

Tire Maintenance Tips for Illinois Drivers

As an Illinois driver, you’re operating in a climate where seasonal temperature swings of 40–60°F can change tire pressure by 4–6 psi, which directly affects contact patch, tread wear rate, and braking performance.

You’ll need to monitor cold inflation pressure at least monthly and after major temperature shifts, adjusting to the vehicle manufacturer’s spec to avoid under-inflation that accelerates shoulder wear or over-inflation that increases center wear.

At the same time, you should configure your tire strategy for potholes, road salt, and frequent wet conditions—using proper load-rated tires, maintaining correct alignment and balance, and ensuring adequate tread depth (at least 4/32″ for wet traction) to withstand impact damage and maintain grip.

Seasonal temperature changes and pressure adjustments

When temperatures swing between Illinois winters and summers, tire pressure can fluctuate considerably—roughly 1 psi for every 10°F change in ambient temperature—directly affecting tread wear patterns, handling, and braking performance.

If you set your tires to the vehicle placard specification at 70°F, a drop to 20°F can pull pressure down about 5 psi, effectively putting you in an underinflated condition that deforms the sidewall and enlarges the contact patch.

To keep wear uniform and geometry correct, you should:

  1. Measure pressures “cold” (after sitting 3+ hours, before driving).
  2. Adjust to the door-jamb specification, not the sidewall maximum.
  3. Recheck pressures monthly and at every major temperature swing (20–30°F).
  4. Use a quality digital gauge and, if needed, a shop’s calibrated equipment for verification.

Preparing for potholes, road salt, and wet conditions

Although Illinois roads might look routine on your daily commute, they subject tires to high-impact potholes, corrosive road salt, and prolonged wet conditions that accelerate wear and structural fatigue.

You should visually inspect sidewalls and inner tread blocks weekly for bulges, separations, or “zebra” scuff marks indicating impact-break damage from potholes. After any severe impact, have radial runout and wheel alignment checked; even a 0.030″ deviation can cause rapid edge wear.

In winter, rinse wheel wells and inner sidewalls regularly to remove chloride residue that attacks steel belts and bead wires.

Maintain tread depth above 4/32″ for effective water evacuation and hydroplaning resistance. Rotate tires every 5,000–6,000 miles to equalize impact loading and verify that load index and speed rating match Illinois highway conditions.

Tire Care and Safety for Illinois Drivers

In Illinois’ mix of wet pavement, snow, and summer heat, worn tread and underinflated tires can push your stopping distances well beyond safe limits and increase the risk of hydroplaning or loss of control.

When your tread depth drops near 4/32″ in front and 3/32″ in the rear, or your tires show irregular wear patterns, you’re operating with considerably reduced braking friction and lateral grip.

When worn tires become a safety risk

Because tread depth, rubber hardness, and wear patterns directly affect traction and stopping distance, worn tires can quickly shift from a minor annoyance to a critical safety hazard for Illinois drivers.

Once tread depth falls near 4/32″, hydroplaning risk rises sharply on wet I‑90 or I‑55 pavement, and below 2/32″ you’re effectively running on slicks.

Visualize four common danger zones:

  1. A worn center rib that can’t evacuate water, turning light rain into a skid event.
  2. Bald outer shoulders that lose lateral grip in tight off‑ramps.
  3. Cupped tread blocks that reduce road contact, lengthening panic stops.
  4. Hardened rubber in winter that behaves like plastic, drastically cutting cold‑weather traction on slush and black ice.

How proper tire maintenance supports braking and handling

When you keep tires properly inflated, aligned, balanced, and rotated, you’re directly protecting your vehicle’s braking and handling performance rather than just “taking care of the rubber.”

Correct pressure maximizes the contact patch so ABS, stability control, and traction control can work as designed, shortening wet‑road stopping distances common on Illinois highways and city streets.

Under‑inflation can increase stopping distance by several car lengths at 60 mph because sidewall flex reduces lateral rigidity and delays load transfer under hard braking.

Misalignment scrubs tread blocks, decreasing available friction and causing the car to drift under braking.

Imbalanced tires induce vibration that reduces pad–rotor contact stability.

Regular rotation keeps tread depth uniform, preserving predictable understeer/oversteer balance during evasive maneuvers and emergency lane changes.

Learn About Tire Inspection Standards Through the Motorist Assurance Program

Tire inspection becomes far more reliable once you understand the Uniform Inspection and Communication Standards (UICS) established by the Motorist Assurance Program (MAP).

These standards define exact tread-depth thresholdssidewall defect criteria, and documentation practices, so you’re not relying on guesswork or vague “looks worn” opinions.

When you follow UICS-based inspections, you visualize your tires in measurable stages:

  1. A tread gauge confirming depths (e.g., 6/32″, 4/32″, 2/32″) across inner, center, outer ribs.
  2. A flashlight scan exposing sidewall bulges, cord impressions, or bead-seat cracking.
  3. precise inflation check against the door-jamb placard, correcting PSI variances.
  4. A written, line-item report separating “required,” “recommended,” and “monitor” actions.

Using MAP’s standards, you get consistent, data-backed tire wear assessments. Let’s help you find auto repair shops that can help you have quality tire wear assessment.

Frequently Asked Questions

How Often Should I Rotate My Tires if I Drive Mostly on Highways?

You should rotate your tires every 6,000–8,000 miles with mostly highway driving. Use a front-to-rear pattern on directional tires, cross-rotation on non-directional. Verify pattern, torque specs, and intervals in your vehicle’s service manual.

Can Mismatched Tire Brands on My Car Cause Premature Tire Wear?

Yes, mismatched tire brands can cause premature wear. Differing tread compounds, load ratings, rolling resistance, and traction profiles force uneven torque distribution, irregular slip angles, unstable alignment dynamics, and inconsistent contact patches, accelerating localized tread and shoulder degradation.

Do Electric Vehicles Wear Out Tires Faster Than Gasoline-Powered Cars?

Yes, EVs typically wear tires faster due to higher torque, heavier curb weight, and regenerative-braking loads. You’ll mitigate this with EV‑specific low-rolling-resistance tires, more frequent rotations, precise alignments, correct cold inflation pressures, and regular tread-depth monitoring.

How Does Carrying Heavy Cargo or Towing Affect Tire Lifespan?

Carrying heavy cargo or towing accelerates tire wear by increasing load-induced heat, contact-patch stress, and shoulder scrubbing. You should stay within GAWR/GCWR, maintain higher load-rated tires, adjust cold inflation pressure per placard, and inspect tread, sidewalls, and temperatures frequently.

Are Nitrogen-Filled Tires Less Likely to Wear Unevenly Than Air-Filled Tires?

They’re not; nitrogen doesn’t greatly reduce uneven wear versus air. “The devil’s in the details”: alignment, rotation intervals, inflation pressure accuracy, and suspension condition control wear patterns. Nitrogen mainly improves pressure stability and corrosion resistance, not tread-wear uniformity.

Takeaways

When you look at your tread, you’re really seeing the physics of load, heat, and friction made visible. Every psi of inflation, every degree of misalignment, and every hard brake stop leaves measurable patterns in rubber. Data from MAP standards and tread‑depth gauges proves that small deviations compound quickly into unsafe wear. If you monitor pressures, rotations, alignment, and inspections on schedule, you’re not guessing—you’re controlling the variables that determine how long your tires actually last.
